20ft Banner Frame System for Shipping Containers – Full Kit
This 20ft banner frame system is the ultimate solution for mounting large banners onto the long side of a standard 20ft shipping container. Designed with modularity and durability in mind, it includes everything needed to install a secure and professional-looking 20ft outdoor banner frame—ideal for events, construction sites, retail units, exhibitions, or mobile businesses.
The kit features vertical mid-point supports for increased wind resistance and stability and can be adapted to fit 16ft or 40ft containers. Constructed from heavy-duty 48.3mm steel scaffold tubes and fixed using Domino Clamps, this shipping container banner frame mounts to the corner castings without drilling, preserving the integrity of your container. It’s perfect for temporary or permanent use and delivers a clean finish with excellent banner tension.

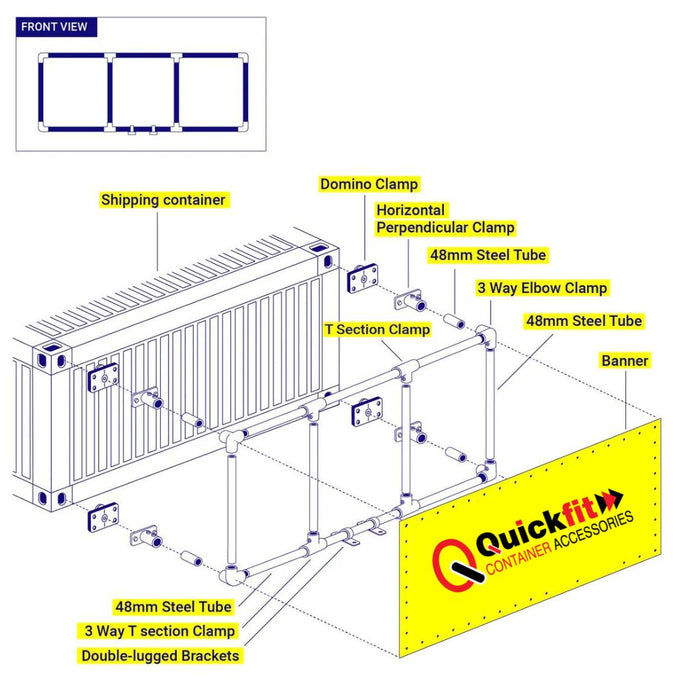

To install, simply attach Domino Clamps to the four corner castings along the container’s long face. Use M12x30 set screws and washers to mount the horizontal tube clamps. If ground anchoring is needed, slide the floor brackets onto the bottom tube before assembling the frame.
Assemble the full frame on the ground using the supplied scaffold tubes and 3-way clamps. Insert the short 14cm spigots into each corner, then—with assistance—tilt the frame upright and slot the spigots into the mounted clamps. Tighten all grub screws using an 8mm hex key. You can then fix your banner display frame securely using rope, bungees, or your banner supplier's recommended method.
For added stability, optional floor fixings allow the flush pull handle for hinged door-style frame to be anchored to the ground—ideal for use in open or high-wind locations.
You’ll need steel scaffold tube (48.3mm):
– (x4) 2.45m verticals
– (x2) 5.8m horizontals
– (x4) 14cm spigots
Double-check container dimensions and setup before cutting your steel tubes. This 20ft banner frame for containers is a professional-grade solution for bold, large-format signage with minimal setup hassle.
