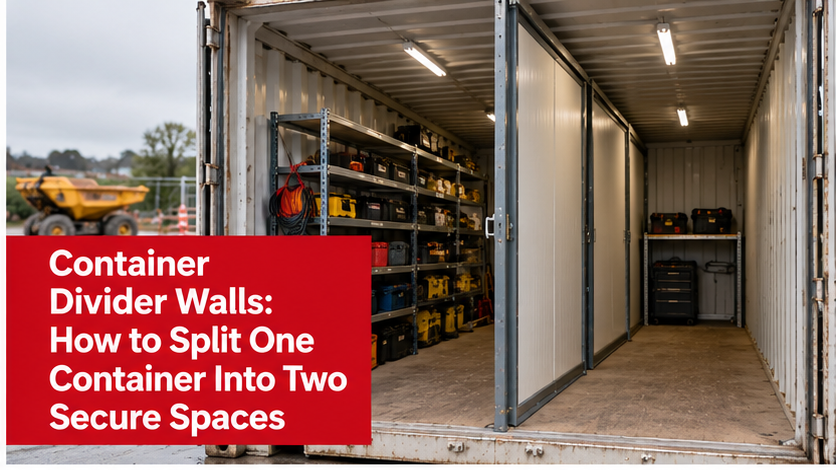

Container Divider Walls: How to Split One Container Into Two Secure Spaces

A contractor opens a 20ft site container on a Monday morning. Thousands of pounds' worth of power tools are tucked behind a stack of plasterboard, and anyone with the padlock key can reach both. Across town, a self-storage operator has a 40ft container and two customers who each only need half of it. In both cases, a second container would mean another delivery, another slot on the yard and more money spent than the job needs.

A shipping container divider wall solves both problems. Fitted inside the container, it splits one long box into two separate compartments, keeping stock, trades or customers apart without buying another unit. Done well, it turns a single container into two practical, secure spaces. Done badly, it leaves one compartment hard to reach, poorly lit and no more secure than before.

This guide covers the types of container partition wall, how to plan the layout, what to know about 20ft, 40ft and high-cube boxes, and the security details that matter.

Why Split a Shipping Container in Two?

Most containers start life as one open space, and that works until two different jobs need to share it. A divider wall is worth considering when:

• You run self-storage. One 40ft container divided into two 20ft units, or a 20ft into two 10ft units, gives you more rentable spaces from the same footprint.

• Different trades share a site. Electricians, plumbers and groundworkers can each have their own compartment rather than one shared free-for-all.

• Valuable kit sits next to bulk materials. Tools, plant attachments and stock can be kept behind a separate lock away from general materials.

• Space on the yard is tight. Dividing an existing container avoids finding room, and budget, for a second one. For context, see our guide to the cost of a 20ft shipping container.

Types of Container Divider Wall

Not every container partition gives the same level of separation or security. The right choice depends on whether you need a permanent fixture, a wall you can move, or a fully lockable unit.

Welding and drilling both alter the container structure and can affect its resale value, so for most storage and site uses, a compression-fit divider wall is the more practical route.

How the Quickfit Shipping Container Divider Wall Works

The Quickfit Shipping Container Divider Wall uses a powder-coated steel frame and a spring-loaded tension bar that presses against the container walls and holds the partition firmly in place. There's no drilling, no welding and no damage to the container, so the wall can be repositioned or taken out later without leaving a mark.

The infill panels are lightweight, moisture-resistant boards, giving each compartment a neat, solid finish. The wall is available in standard sizes for 8ft, 10ft, 20ft and 40ft containers, and it works with our modular Insta Doors, available in the doors and windows range, so you can add a lockable door between compartments.

There's an installation video linked on the product page if you want to see the fitting process before ordering.

Can the Divider Wall Be Removed From One Side?

No. That's an important point for self-storage operators renting compartments to different customers. The wall is held by high-tensile compression springs, and the fixing bolts are only partially threaded, so they can't be over-tightened or wound back to release the tension. The centre section has to be unbolted from both sides before the wall comes out, which means nobody can remove it from inside one compartment alone.

If all four bolts end up facing one side, simply fit the wall the other way round. That puts two bolts on each side, so access to both compartments is needed to take it down.

Dividing a High-Cube Container

High-cube containers are roughly 30cm taller inside than a standard box. To close that extra gap above a standard divider wall, use the Divider Wall High-Cube Enclosure Panels Set. It fills the space so the partition runs right up to the roof.

How to Divide a Shipping Container: Step by Step

Step 1: Measure the Inside of the Container

Measure the internal length, width and height, not the external dimensions. As a guide, a standard 20ft container is roughly 5.9m long, 2.35m wide and 2.39m high inside, while a high-cube adds around 30cm of height. Check for anything that could get in the way of the wall, such as racking, lights, cable runs, vents or lashing rings.

Step 2: Plan Access to Both Compartments First

This is the step most people get wrong. In a standard container with doors at one end only, the rear compartment can only be reached through the front one. That's fine if one person uses both spaces, but not if you're renting them to two different customers.

You have three main options:

• A tunnel container. Doors at both ends give each compartment its own entrance.

• A side or personnel door. Fitting a door into the side wall gives the rear compartment its own way in.

• A door in the divider wall. Adding an Insta Door lets one user pass between compartments while keeping each one separately lockable.

Step 3: Decide Where the Wall Goes

The split doesn't have to be equal. A contractor might give one-third of a 20ft container to tools and two-thirds to materials. A self-storage operator usually splits down the middle to create two equal rentable units. Think about the size of the largest item each side needs to hold, and leave enough room to move pallet trucks or trolleys safely.

Step 4: Light and Ventilate Each Side

Once the wall is in, each compartment is effectively its own container. A rear compartment with no airflow will soon suffer from condensation, and one with no light becomes a hazard. Check each side has its own air vents and consider fitting container lighting, such as motion sensor lights, in both. Our guide to venting a shipping container covers vent placement in detail.

Dividing a 20ft vs a 40ft Container

A 20ft container suits two compact compartments, but every metre counts, so plan carefully around the doors. A 40ft container gives far more flexibility, and on a tunnel 40ft you can create two completely independent units.

Security Considerations

A divider wall controls who can get into each compartment, but the security of the whole setup depends on its weakest point. Think about:

• The wall's fixing. It needs to stay firmly in place and resist being pushed or pulled out of position. Compression-fit designs that can't be removed from one side are well suited to shared use.

• The doors and locks. Every compartment needs its own lockable entry. Pair each door with a quality container padlock and, ideally, a lock box to protect the padlock from bolt croppers.

• Emergency access. Never create a layout where someone could be shut inside a compartment with no way out.

Practical rule: a divider wall is only as secure as the door and lock on each side of it. Spend as much thought on access as you do on the wall itself.

Common Mistakes When Fitting a Container Divider Wall

• Planning the wall before planning the access. A rear compartment with no door of its own is no use to a second customer.

• Forgetting ventilation and light. Splitting the container splits the airflow too.

• Ignoring the extra height in a high-cube. A standard wall in a high-cube leaves a gap at the top unless enclosure panels are fitted.

• Drilling or welding when you don't need to. Permanent alterations can weaken the container and reduce its resale value.

• Treating a basic partition as a security barrier. A simple screen helps with organisation, but it won't stop a determined thief.

Frequently Asked Questions

Can you put a dividing wall in a shipping container?

Yes. Both 20ft and 40ft containers, as well as smaller 8ft and 10ft units, can be divided with an internal partition. A compression-fit divider wall is the simplest option because it needs no drilling or welding.

Do I need to drill or weld to fit a container divider wall?

Not with a compression-fit design. The Quickfit divider wall is held in place by spring tension, so it fits without any permanent changes to the container.

Can a container divider wall be moved later?

Yes. Because it isn't fixed into the container structure, a compression-fit divider wall can be taken down and repositioned if your storage needs change.

Will a divider wall fit a high-cube container?

Yes, with the addition of high-cube enclosure panels to fill the extra height above a standard wall.

Is a divider wall secure enough for self-storage?

A divider wall that can't be removed from one side, combined with a lockable door and a good padlock for each compartment, is a common setup for self-storage. Each unit also needs its own access route.

Make Better Use of Your Container With Quickfit Container Accessories

A well-planned divider wall turns one shipping container into two useful, secure spaces, whether you're creating rentable self-storage units, separating trades on site or keeping valuable kit away from bulk materials.

Explore our divider walls and partitions, or speak to the team about the right setup for your container. Call 020 7118 8373 or email sales@qfca.co.uk.

Planning a wider fit-out? Our guides to small container storage and shipping container modification parts are a good next read.
