Self Drilling Shipping Container Single Door – No Welding Required | Self Install

SELF DRILLING SHIPPING CONTAINER SINGLE DOOR – NO WELDING REQUIRED | SELF INSTALL

Link to Installation Video

Most shipping container doors require a full steel frame and welding to install — making them costly, time-consuming, and difficult to fit.

This door is different.

Our Self Drilling Shipping Container Door is designed for straightforward installation directly onto your container using standard fixings, with no welding required. The self-drill installation means you can fit it yourself quickly and easily, without specialist tools or fabrication work.

Featuring a strong multi-point locking system, this door provides enhanced security with multiple locking points across the frame. It is also fitted with a Euro cylinder lock, allowing you to easily change or upgrade the cylinder if required.

Please note: Fixings (screws/bolts) are not included and will need to be supplied by the installer depending on the application. The door is supplied complete with handle and locking system.

Perfect for container conversions, workshops, and storage units, this door provides a secure, insulated, and professional finish with minimal installation effort.

Key Benefits

• No welding or steel frame required
• Self install design – fit it yourself
• Saves time and installation costs
• Ideal for container conversions and modifications
• Strong, secure multi-point locking system
• Supplied with handle and locking system (fixings not included)
• Multi-point locking system for enhanced security
• Euro cylinder lock - easily replaceable or upgradeable

Specifications

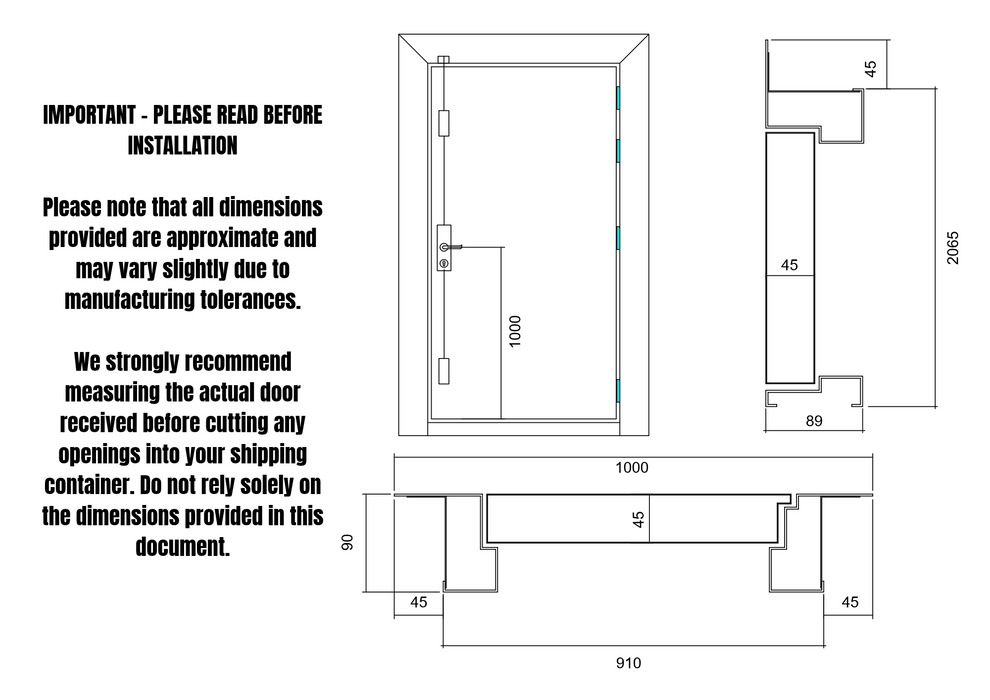

• Internal Size: 1085mm x 2055mm
• External Size: 1175mm x 2100mm
• Material Thickness: 1.5mm / 0.8mm
• Door Leaf Thickness: 45mm
• Frame Thickness: 90mm
• Filling: Rockwool insulation
• Lock: 10-point multi-point locking system
• Threshold: SUS304 stainless steel (28mm height)
• Security: Anti-theft stainless steel studs + internal steel mesh reinforcement

Dimensions:

Internal Size: 1085mm x 2055mm
External Size: 1175mm x 2100mm

Weight: 50 kg
