Shipping Container 4 Tier Pipe Racking Kit

SHIPPING CONTAINER 4 TIER PIPE RACKING KIT

Please Note: 4 Tier Pipe Racking Brackets are sold individually. Pipes shown in images are for illustration purposes only and are not included.

Click Here to Watch the Installation Video

Heavy-Duty Pipe Storage for Shipping Containers

Maximise the storage capacity of your shipping container with our 4 Tier Pipe Racking Bracket. Designed specifically for ISO shipping containers, this heavy-duty storage solution provides a safe, organised way to store pipes, conduit, scaffold poles, box section, steel tube, timber lengths and other long materials.

Designed to fit 99.9% of shipping containers fitted with internal D-Rings (lashing points), each bracket installs in just minutes with no drilling, welding or bolting required. Simply hook the bracket into place and create an instant professional pipe storage system without permanently modifying your container.

Perfect for workshops, self-storage facilities, construction sites, engineering workshops, farms and industrial storage applications.

Designed for Strength & Safety

Each bracket features four heavy-duty storage arms positioned at a 30° upward angle to securely retain stored materials while maximising storage capacity.

Every arm is reinforced with welded gussets for additional strength and incorporates an integrated rolling stop, helping prevent pipes or other round materials from accidentally rolling out during storage.

The clever suspended design also leaves approximately 24 inches of unobstructed floor space beneath the bracket, allowing bulky equipment, pallets or heavy items to be stored underneath without wasting valuable floor area.

Please note: Floor clearance may vary depending on the model and specification of the shipping container.

Specifications

• Weight: 4.72kg (10.5 lbs) per bracket
• Load Capacity: 250kg (550 lbs) per arm
• Maximum Bracket Capacity: 500kg (1,100 lbs)
• Storage Levels: 4
• Arm Angle: 30°
• Finish: Heavy-duty powder-coated steel

Features

• Hooks directly onto existing Shipping Container D-Rings
• Can also hook into compatible Shipping Container Corner Castings
• No drilling, welding or bolting required
• Installs in approximately 5 minutes
• Quick to remove and reposition
• Leaves no damage to the container when removed
• Integrated rolling stops for additional safety
• Reinforced gusseted arms for maximum strength
• Provides unobstructed storage space beneath the rack
• Modular design allows additional brackets to be added as storage requirements grow

Recommended Quantity Per Container

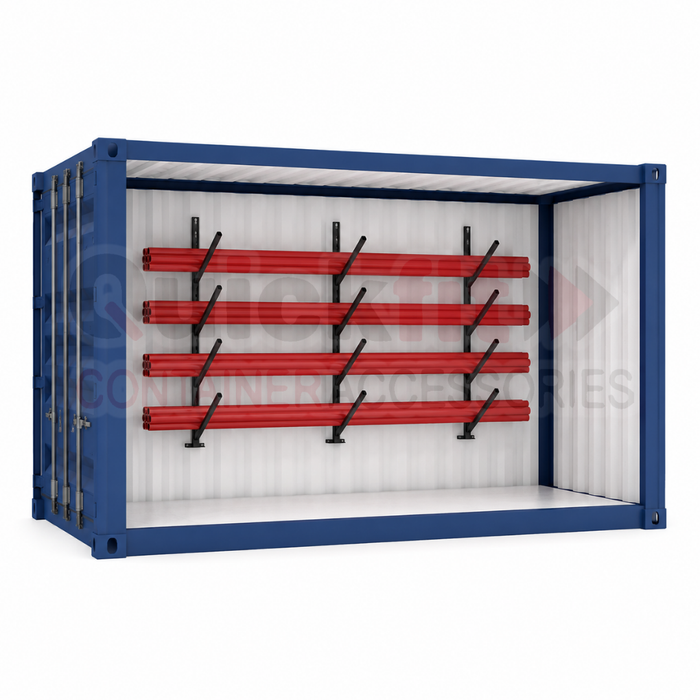

10ft Shipping Container

• 2–3 brackets recommended for one side of the container

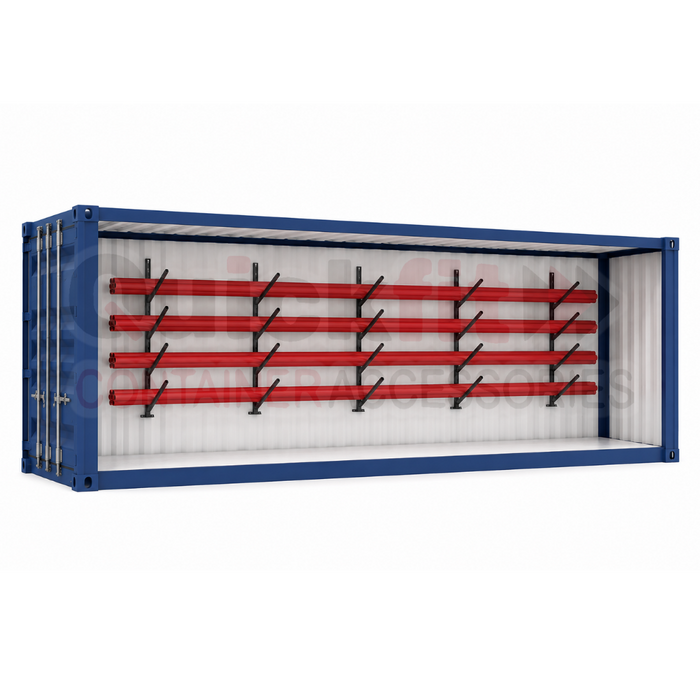

20ft Shipping Container

• 3–5 brackets recommended for one side of the container

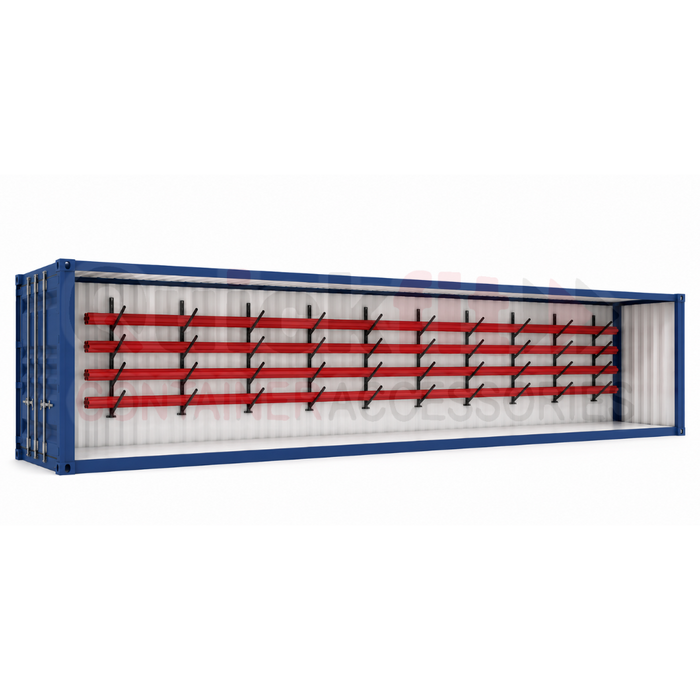

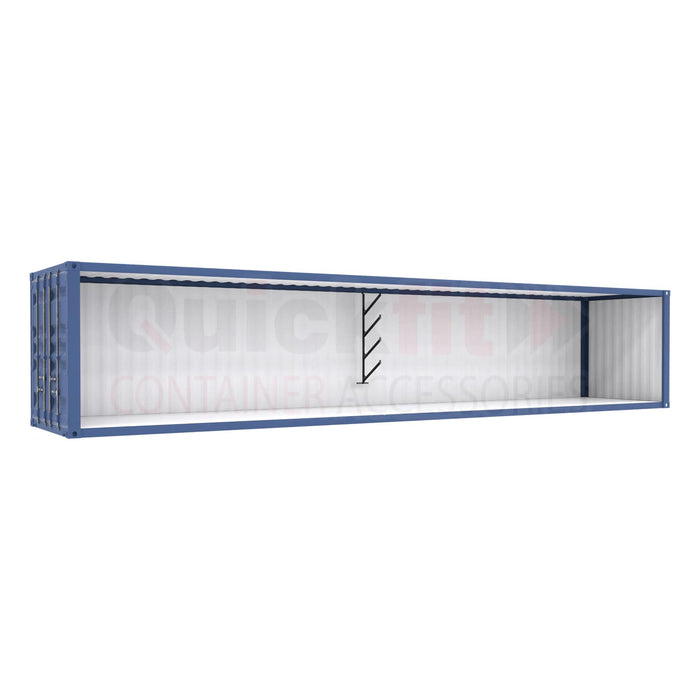

40ft Shipping Container

• 8–10 brackets recommended for one side of the container

Ideal For Storing

• Steel tube
• Scaffold poles
• Copper pipe
• Plastic pipe
• Electrical conduit
• Timber lengths
• Box section
• Angle iron
• Metal bar
• Aluminium extrusion
• PVC pipe
• Long building materials

Compatible Accessories

To complete your installation, we also supply Weld-On D-Rings and Bolt-On D-Rings for containers that do not already have suitable internal fixing points.

Whether you're organising a workshop, fitting out a site container, or maximising storage space in an industrial unit, our 4 Tier Shipping Container Pipe Racking Bracket provides a strong, professional and highly durable storage solution without permanently modifying your container.

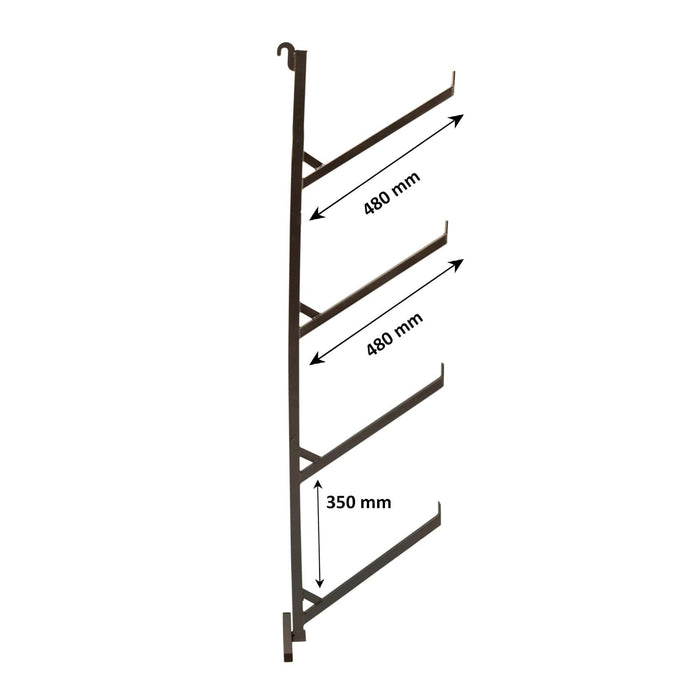

Dimensions: 1450MM X 480MM

Weight: 4.72 kg
